The Big Fracking Question: Is Drinking Water At Risk?

By Blaise Ekechukwu, graduate student and Jafar Soltan, P. Eng., associate professor of chemical engineering, University of Saskatchewan

Understanding the impacts of hydraulic fracturing (“fracking”) on source water, in both quantity and quality, is of vital importance to industry, the economy, and society. The latest research on the subject is presented, along with possible solutions to help overcome known and potential problems.

In an attempt to proffer a solution to the global high demand for energy, energy production has been increased with the introduction of hydraulic fracturing for accessing low-permeability, organicrich shale formations and tight gas sands, with the resultant increase in natural gas production. These benefits of hydraulic fracturing have led to exemption of flow-back fluids from regulatory bodies in the U.S. and mandates within the Resource Conservation and Recovery Act (RCRA) and the Safe Drinking Water Act (SDWA). Hydraulic fracturing, a non-conventional method of drilling, is believed to have negative effects on source water. This article addresses the purported impacts of hydraulic fracturing processes on source water, the mechanism of the contamination of source water, the possible solutions to these negative impacts of hydraulic fracturing, and the need for further investigation and scientific research on the behavior of hydraulic fracturing fluids with the aim of identifying potential risks to source water.

Hydraulic fracturing functions as a double-edged sword: It permits the extraction of oil and natural gas in an unconventional reservoir with low permeability but also carries significant environmental risk. To summarize the practice, hydraulic fracturing is a wellstimulation technique used for the extraction of oil and natural gas in unconventional reservoirs with low permeability, such as shale, coal beds, and tight sands¹. To understand the environmental risks associated with hydraulic fracturing, also known as fracking, a brief overview of the fracking water cycle is below.

Hydraulic Fracturing Water Cycle
The hydraulic water cycle is divided into five stages², as shown in Figure 1.

1. Water acquisition
2. Chemical mixing
3. Well injection
4. Flow-back and produced water
5. Wastewater treatment and waste disposal

The large volume of water needed for fracking is transported to the site, followed by the mixing of the water with chemicals and sand (proppant) at the well site. The well injection process as shown in Figure 2 involves the injection of engineered fluids or chemicals and granular materials into the well at high pressure between 15 to 100 psi (pound force per square inch) to shatter petroleum reserves and stimulate the flow of oil or natural gas to the surface1. After the fracturing of the well, the injection fluids are forced out under pressure. The flow-back fluids are either re-injected to Class II injection wells, recycled at the site, or transported to wastewater treatment facilities².

Regardless of the high resource potential and economic benefits of the process, there is growing concern about the negative potential environmental impacts and human health implications, which may include groundwater and surface water contamination, land destruction, air pollution, geologic disruption, greenhouse emissions, and radiation1,3. The risk of hydraulic fracturing is more focused on its impact on source water and the potential contamination route, which would be the area of focus in this report. Although it is believed that hydraulic fracturing poses a risk to water resources, the extent of the risk and/ or damage already inflicted are yet to be properly assessed due to insufficient scientific information and understanding of the mode of the risk⁴.

Potential Risks Of Hydraulic Fracturing To Source Water
The risks associated with hydraulic fracturing to source water include:

Water scarcity: Despite the consumption of high volumes of water, the total volume consumed is relatively small compared to the existing water resources in Canada4. Also, in the U.S., the quantity of water withdrawn for hydraulic fracturing is only about one percent of the total freshwater when compared to usage by thermoelectric-power generation, which consumes approximately 40 percent of the total freshwater withdrawal6,7. However, in areas with dry climates like Texas, Colorado, and California, the use of water for hydraulic fracturing could compete with other water needs, leading to local water shortages which subsequently degrade water quality.

Stray gas contamination: Stray gas (fugitive hydrocarbon gases) contaminates shallow aquifers, leading to salinization of shallow groundwater from hydraulic fracturing fluids through leaking shale gas³.

Spills and leaks: Surface leaks and spills of flow-back and produced water through insufficient pit lining, onsite spills, overflow, or breaching of surface pits during shale gas operations mainly occur near drilling locations³. They contaminate soil, surface water, and shallow groundwater.

Figure 1. Water use and potential concerns in hydraulic fracturing operations (adapted from EPA, 2011²)

Toxic and radioactive accumulation: The disposal of treated flow-back and produced wastewater containing naturally occurring radioactive materials (NORM) may lead to accumulation of radium in stream sediments downstream of the disposal sites⁵. The radiation poses environmental and health risks.

Insufficient treatment and unauthorized discharge of untreated water from shale gas operations: This was revealed by joint U.S. Geological Survey (USGS) and U.S. Fish and Wildlife Service (FWS) studies, as in the case of Acorn Fork Creek in southern Kentucky in May and June 2007, which linked the deaths of aquatic species to the disposal of untreated wastewater10. It was also observed that effluent discharges from treatment sites in Pavillion, WY were known for their high salinity levels (120,000 mg/L), high toxic metals (strontium and barium) and radioactive elements (radium isotopes), and organic makeup (benzene and toluene)¹¹.

Figure 1 presents the hydraulic fracturing water cycle and the potential source water issues.

Potential Threat To Surface Water Sources
Surface water contamination from hydraulic fracturing fluid may occur during treatment, storage, or disposal processes when there are accidental spills, leakages, or leaching into the nearby surface water¹. Hydraulic fracturing wastewater also poses a threat to surface water because it contains other chemicals (metals, dissolved solids, organics, and nucleotides other than the fracking additives) that could overflow, spill, or leach into the groundwater and contaminate nearby rivers or streams¹. When they are treated, the total dissolved solids (TDS) remain high, and the remaining salts are used as road salts, which enter surface waters.

Potential Threat To Groundwater Sources
The anticipated groundwater contamination mechanism is related to flow-back waters and hydraulic fracturing fluids, which could lead to upward leakage of natural gas along well casings or natural fractures that allow entry of gas into fresh water aquifers or into the atmosphere³. Further studies are needed to verify this claim. In addition, the natural geochemical processes allow the gas to be assimilated by the fresh water aquifer, which reacts and may liberate natural contaminants such as metals and hydrogen sulfide, leading to degradation in water quality⁴. This claim has not been substantiated, as there have not been any baseline monitoring and assessment of the assimilation capacity in potential shale gas regions to ascertain the release of these contaminants4. Other proposed possible mechanisms include:

• Oxidation of fugitive methane through sulfate-reducing bacteria. This initiates the reductive dissolution of oxides in the aquifer, which may mobilize redoxsensitive elements (manganese, iron, or arsenic) and reduce the quality of groundwater³.
• High concentration of halogens in saline waters could lead to the formation of toxic trihalomethanes (THM), though there is no data related to stray gas contamination from shale gas wells³.
• There is evidence of cases of naturally occurring saline groundwater in areas of shale gas development in the Appalachian Basin, which makes the quantification of contamination from antropogenic sources of groundwater pollution difficult³.

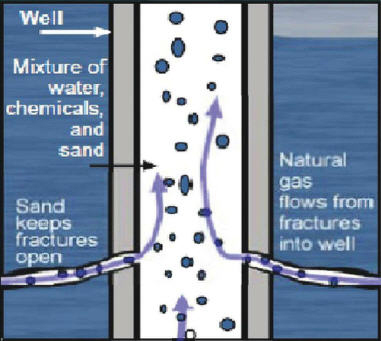

Figure 2. The hydraulic fracturing process (adapted from EPA , 2011²)

Possible Solutions

1. Previous studies show that stray gas contamination happens within less than 1 km (3,281 ft.)^12,13 of the well site. Based on this, enforcing a safe zone of 1 km between an existing drinking water well and proposed shale gas sites is reasonable.
2. The impact of natural gas irrespective of naturally occurring, or leakage from, shale gas could be addressed by mandatory baseline monitoring using modern modeling tools for the characterization of the chemical and isotopic compositions in areas of shale gas development3.
3. Full disclosure of the hydraulic fracturing chemicals used for open and scientific discussion and investigations³ is recommended.
4. A zero discharge policy on untreated wastewater and developing adequate treatment technologies will prevent surface contamination³. In addition, developing remediation technologies for adequate treatment and safe disposal of wastewater will alleviate environmental issues associated with hydraulic fracturing processes³.
5. The water scarcity issue could be remedied using the highlighted means:
   • By good water management practices coupled with improved characterization and monitoring of the drainage basin in the region of shale gas development, the challenge of water use could be avoided⁴.
   • The use of saline, mineralized, and other forms of marginal water or other types of liquid-like gel for hydraulic fracturing will limit the use of fresh water resources for shale gas development³. For instance, in the Horn River Basin of British Columbia, Canada, saline groundwater of TDS (30,000 mg/L) is treated, which removes hydrogen sulfide and other gases, and the treated water is used for hydraulic fracturing⁹.
   • The use of acid mine drainage (AMD) for hydraulic fracturing could mitigate the AMD discharge, which could be blended with flow-back waters, leading to the formation of Sr-barite salts that neutralize some of the contaminants in both fluids⁸.
   • Withdrawing water during the peak period and storing until it is needed⁴.
   • Recycling of flow-back water.

Conclusion
With the debate on the negative impacts of hydraulic fracturing to environment and human health, there is need for further research on the behavioral activities of hydraulic fracturing chemicals/additives and the mechanism of contamination of source water. Such research would identify the potential risks associated with hydraulic fracturing processes and provide means of mitigating the contamination of source water.
