Guest Column | August 30, 2019

Perception vs. Reality: The Facts About U.S. Lead Exposures

By Joseph A. Cotruvo, Ph.D., BCES

The lessons of Flint should be well heeded, and lead mitigation continued, but the big-picture story of lead exposures in the U.S. is a tale of tremendous progress.

Average blood lead levels in U.S. children have declined by about 95 percent in the last 40 years, due to eliminating leaded gasoline and lead paint, eliminating lead from food-can and water-pipe solders, more widespread controlling of drinking water corrosion, removing lead service lines, and reformulating brass water fixtures. The National Health and Nutrition Examination Survey (NHANES II) conducted from 1976 to 1980 found average child blood lead levels were about 16 μg/dL (micrograms per 100 cc of blood) with 63.3 percent between 10 and 19 μg/dL. Following mitigation efforts, national average values were reduced to 2.7 μg/dL by 1991, 1.9 μg/dL by 2002, and 0.84 ug/dL in 2014 (Gomez et al, 2018).

The U.S. EPA’s Lead and Copper Rule (LCR) has been effective by improving corrosion control, reducing lead service lines, and contributing to reductions of child blood lead. The Flint, MI, problem (2014-2016) would not have occurred if the water authority had applied standard practices and the State of Michigan had enforced the existing LCR (EPA, 1991).

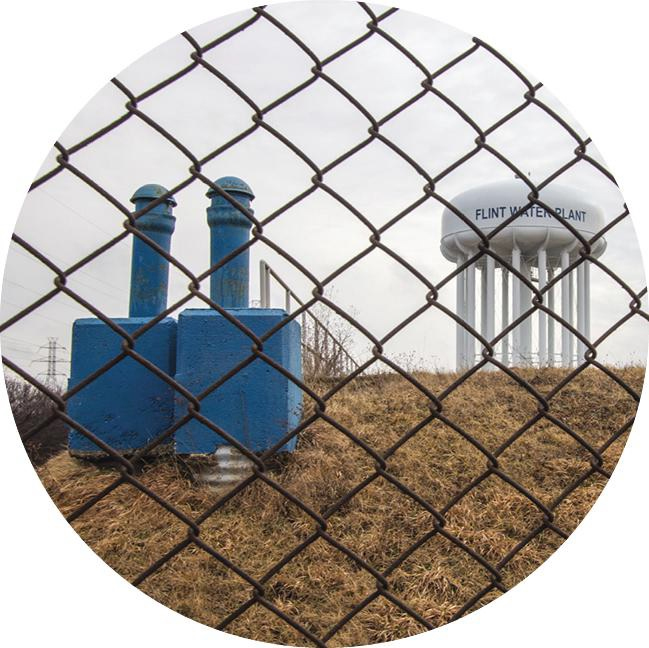

Flint is “ground zero” for lead contamination controversy

The Centers for Disease Control and Prevention (CDC) “reference level” is now 5 μg/dL, the 97.5th percentile where action is recommended to eliminate the source. Subtle IQ losses are suspected between about 5 and 10 μg/dL, or possibly less. CDC recommends chelation therapy be considered if blood lead levels exceed 45 μg/dL.

The water in Flint was obviously tainted; therefore, many people avoided drinking it, and child blood lead levels were not significantly affected. Gomez (2018) examined almost 16,000 Flint child blood lead samples between 2006 and 2016. Blood lead frequencies above 5 μg/dL were 11.8 percent in 2006 and 3.7 percent in 2016. Means were 2.33 μg/dL in 2006 and 1.15 μg/dL in 2016.

The half-life of lead in blood is about 30 days. CDC’s 2016 report of more than 9,000 blood samples indicated a temporary increase from 2.5 percent to 4.2 percent of children with blood lead between 5 and 9 μg/dL (71 children, up from 59) after the switch to Flint River water, and a decline from 3.4 percent to 1.1 percent (from 68 to 37) after changing back to Detroit water. Bottled water was provided for much of that period. Numbers above 10 μg/dL were not increased. The greater health outcome in Flint was probably increased legionellosis risk from inhalation of aerosols. At one point, there were 87 cases of legionellosis and 12 deaths (Zahran et al, 2018).

The EPA’s 1991 lead regulation requires water suppliers to test for excessive corrosivity at taps in highest-risk locations under extreme non-routine use conditions. Water must be stagnant for a minimum of six hours. A one-liter first-draw sample is collected; if more than 10 percent exceeds the Action Levels (15 μg/L for lead; 1.3 mg/L for copper), corrosion control and public notification are required. If unsuccessful, a lead service line replacement program is required.

"The successful reduction in national lead exposure demonstrates how comprehensive strategies aimed at a definable problem can be effective where risk reduction benefits are measurable."

The LCR Action Level is not a Maximum Contaminant Level (MCL) and does not presume typical exposure. It is a screening value for excessive corrosion under extreme circumstances. It is intended as a virtual worst case and includes water in contact with the usually leaded brass tap and some solder joints. The World Health Organization’s lead in drinking water guideline and the European Union’s drinking water lead directive are 10 μg/L. They do not require stagnant first-draw water as the LCR screening test does.

Regulation Suggestions And Consumer Advice

The LCR could be strengthened with minimal effort.

  • Partial lead service line replacements are not recommended. Bottled water or filters should be provided for a few weeks after service line replacements.
  • Recruiting residents to conduct monitoring is difficult to arrange. Onsite sampling by professionals with residents’ approval is more reliable. Laboratory testing of lead lines to continuously determine the corrosivity is an option.
  • Adding a second-draw sample of service line water would be useful. DC Water showed good consistency and correlations between lead and iron from galvanized pipe, and that phosphate corrosion control was successful.
  • Lead service lines were not used for buildings because lead pipe capacity is small, so first-draw samples would be appropriate for apartment buildings.

Consumer recommendations:

  • Check for lead service connections. Locate incoming water line connections to the indoor meter. Ask the water supplier for a water analysis, if in doubt.
  • Do not drink first-draw water, regardless of plumbing type. It will probably be warm, and it won’t taste very good. Run the tap for several seconds, preferably until the temperature has changed.
  • Do not make baby formula, reconstituted juices, rice, pasta, boiled potatoes, or soup from first-draw water or water from the hot water tap.
  • If there is galvanized iron pipe in your home plumbing, sample for lead and iron. Old galvanized pipe should be replaced.
  • Be sure your water supplier is meeting all regulations. Read your “Consumer Confidence Report,” which water suppliers must provide.

The successful reduction in national lead exposure demonstrates how comprehensive strategies aimed at a definable problem can be effective where risk reduction benefits are measurable. Average national blood lead levels have declined by more than 95 percent from 16 μg/dL to less than 0.84 μg/dL since NHANES II (1976-1980). Corrosion control, including the use of phosphates, has been very successful at minimizing lead release from plumbing. Continued effort is needed to eliminate old remaining lead paint and galvanized water pipe. Similar to lead paint and radon exposure management, lead service lines could be reduced more rapidly if mitigation were required when properties change hands.

Flint raised lead awareness and stimulated concerted efforts to address issues (e.g., schools). Fortunately, the data show that very high child exposures did not occur. The recent lead problem in Newark, NJ, is another example of the water supplier and the state regulator not enforcing the regulations and then expecting the federal government to pay for lead service line replacement. The LCR must be applied by all water suppliers and enforced by the regulatory agencies. The LCR could be modified somewhat and simplified, but it has been successful when enforced.

The successful reduction in national lead exposure demonstrates how comprehensive strategies aimed at a definable problem can be effective where risk reduction benefits are measurable.

Note: This article was derived substantially from “Lead Reduction is a National Success Story”, JAWWA, 111:4, 73-75, April 2019 https://doi.org/10.1002/awwa.1277)

References

CDC (2016). Blood Lead Levels Among Children Aged <6 Years-Flint, Michigan, 2013-2016. Morbidity and Mortality Weekly Report. Vol. 65 (www.cdc.gov/mmwr/volumes/65/wr/mm6525e1.htm)

Cotruvo, JA (2018). Drinking Water Quality and Contaminants Guidebook. Information for Water Professionals, Regulators and the Public on Drinking Water Quality, Health and Safety. CRC Press/Taylor and Francis, August 22, 2018. ISBN-13: 978-0-8153-6305-7.

EPA (1991). Lead and Copper Rule 56 FR 26460, June 7, 1991. EPA 816 F-08-018, June 2008 (http://water.epa.gov/lawsregs/sdwa/index.cfm)

Gomez, HF, et al. Blood Lead Levels of Children in Flint, Michigan: 2006-2016. J. Pediatrics, 197, 158-164, 2018.

Gomez HF, and Dietrich, K. (2018). The Children of Flint Were Not ‘Poisoned.’ New York Times (https://www.nytimes.com/2018/07/22/opinion/flint-lead-poisoning-water.html), July 22, 2018.

WHO (2017). World Health Organization Guidelines for Drinking-water Quality, 4th edition. (http://www.who.int/water_sanitation_health/publications/drinking-water-quality-guidelines-4-including-1st-addendum/en/)

Zahran, et al (2018). Assessment of the Legionnaires’ disease outbreak in Flint, Michigan. Proceedings of the National Academy of Sciences, 115 (8) E1730-E1739. February 20, 2018.

About The Author

Dr. Joseph Cotruvo is president of Joseph Cotruvo and Associates, Water, Environment and Public Health Consultants, with a Ph.D. in Physical Organic Chemistry from the Ohio State University. He is Board Certified in Environmental Sciences and a Research Professor in Chemistry and of Environmental Sciences at the University of Toledo. At the U.S. EPA he was the first Director of the Drinking Water Standards Division, initiating EPA’s Drinking Water Health Advisory Program, and Director of the Risk Assessment Division in the Toxics program. He was a member of the Board of Directors of DC Water and has over 300 publications, presentations, and articles on health risk, water quality, and safety.
