Guest Column | July 27, 2022

Fighting Lead In Drinking Water At The Source

By Cathy Proctor and Jay Adams, Denver Water

The cellphone video is grainy and shaky.

“Are you guys ready?” asks a voice, calling out to the operators of Denver Water’s Marston Treatment Plant on the other end of the speaker phone. "Hey Marston, are you guys ready?”

“Sure,” comes the confident response. “We’ve been ready, man!”

“All right. … Three. Two. One. Go.”

And with that, on March 3, 2020, a plant operator at Denver Water’s Foothills Treatment Plant, the largest in the utility’s system, reached out and tapped a key on a computer keyboard.

It was, according to one longtime water professional, “a NASA-like moment.”

Watch that moment:



That tap — and similar taps at Denver Water’s other two drinking water treatment plants — collectively raised the pH level of the water Denver Water delivers to homes and businesses. The higher pH level, in turn, reduces the risk of lead in customers' drinking water.

There is no lead in the water Denver Water delivers, but lead can get into the water as it passes through customers’ own lead water service lines and household plumbing and faucet parts that contain lead.

Raising and maintaining the new, higher 8.8 pH level for water delivered across Denver Water’s 335-square-mile service area that includes the city of Denver and surrounding suburbs is the largest part of the utility’s ground-breaking Lead Reduction Program.

Alejandro Beltran, a water treatment technician at Denver Water's Foothills Treatment Plant, checks the pH level of the water running through the plant.

The more visible parts of the Lead Reduction Program, which launched in 2020,involve locatingandreplacing between 64,000 and 84,000 customer-owned old lead service lines in Denver Water's service area at no direct cost to the customer by 2035. It includes providing water pitchers and filters certified to remove lead to more than 100,000 households enrolled in the program, and reaching out to customers to educate them about the program.

Less visible is the higher pH level of the water Denver Water delivers to customers.

That's the piece that protects each of the 1.5 million people who rely on Denver Water for their water supply from the health risks posed by lead that may be in their old lead water service lines, plumbing and faucets.

And it’s had a widespread impact.



Denver Water’s customers are better protected from the risk of lead.

And the work involved in raising the pH level and keeping it there, day after day, hour after hour, as millions of gallons of water moves from the utility’s treatment plants, through its distribution system, to customers’ homes and businesses, has created new science, improved teamwork and generated immense pride among the people involved.

“It’s really brought us together, because we all focus on pH and talk about it so much more than we used to. Everyone is involved,” said Patty Brubaker, who as plant manager and South System asset manager oversees all the assets and facilities related to Denver Water’s Marston and Foothills treatment plants on the southwest side of the metro area.

Customers better protected

PH is measured on a scale of 0 to 14, with 7 considered neutral, meaning there’s a balance between how basic or acidic the water is.

Raising the pH level of water makes it less acidic and therefore less corrosive. And when water touches a lead pipe, water with a higher pH reacts to the metal and strengthens an existing protective coating, reducing the potential for lead or other metals to get into the water.

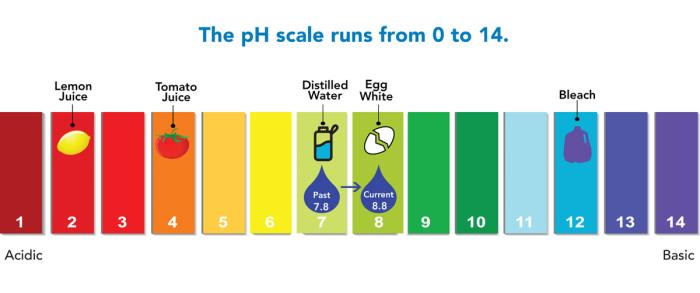

This chart shows levels of pH in various liquids. Denver Water raised its pH level from 7.8 to 8.8 in 2020.

After Denver Water raised pH levels to 8.8 in early March 2020, lead levels dropped significantly, according to the utility’s regular tests of drinking water taken from faucets in customer’s homes that are known to have lead service lines.

Denver Water routinely collects samples of water at homes with lead service lines to monitor lead levels in the water. There is no lead in the water Denver Water delivers, but lead can get into water through lead pipes and plumbing.

For the people who had worked on Denver Water’s years long efforts to combat the effects of old lead service lines, watching test results with lower lead levels roll in through the weeks and months following the spring 2020 increase in pH levels was elating.

“It’s like that moment when you’re at a soccer game and you shout ‘GOOOAAAAALLLL!’ I was like ‘YES! It’s working!’” said Nicole Peschel, a water quality planner who for years has worked closely with the homeowners who have lead service lines and allow Denver Water to regularly test their drinking water for lead.

Nicole Peschel, water quality work senior planner, loads bottles into a cooler to collect water samples from homes with lead service lines.

“We still will need to replace their service lines. Customers enrolled in our Lead Reduction Program still need to use the water filters, but the levels are lower. The pH increase definitely increased the protective coating. Our customers are better protected,” she said.

“It worked.”

The proof lies in the test results of samples Peschel and her team collected from the homes of customers with lead service lines.

In fall 2019, before Denver Water raised the pH level of the water it delivered, the highest 10% of those test results — known as the 90th percentile under the Environmental Protection Agency’s Lead and Copper Rule, the set of regulations that govern lead in drinking water — were at 11 parts per billion.

(Note: The 2019 test results were below the 15 ppb level at which the Environmental Protection Agency requires a utility to take action under the federal Lead and Copper Rule.)

The spring 2020 test results, as the water carrying the higher pH level started flowing, dropped to 6.1 ppb. By fall 2020, the 90th percentile test results dropped to 4.1 ppb.

The results Denver Water has seen — not only the significant drop in lead levels in the test results, but also the utility’s ability to maintain an 8.8 pH with relatively little variance across 3,000 miles of water delivery pipes — has turned heads across the water industry.

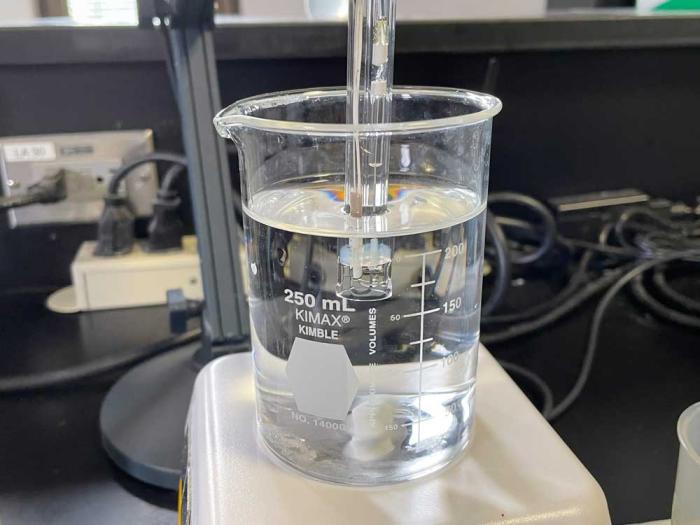

A sensor inside a laboratory beaker measures the pH level of water flowing through Denver Water's Foothills Treatment Plant.

Inquiries have come from water utility professionals across the country and around the world, with callers asking for details on how Denver Water tackled the issue of old lead service lines.

“What our people are doing, the results that they’re getting, it’s amazing,” said Nicole Poncelet-Johnson, director of the utility’s water quality and treatment section.

“Industry experts, process engineers, people with master’s and Ph.D.’s in this, they say it’s phenomenal how well Denver Water is managing pH. The work that’s coming out of the water quality and the treatment group here is furthering the science and technology of this issue.

“It’s working, and we continue to learn and make it better.”

A team working with the equipment used to monitor pH levels across Denver Water’s distribution system is studying the next generation of sensors to see if they might be integrated into the system.

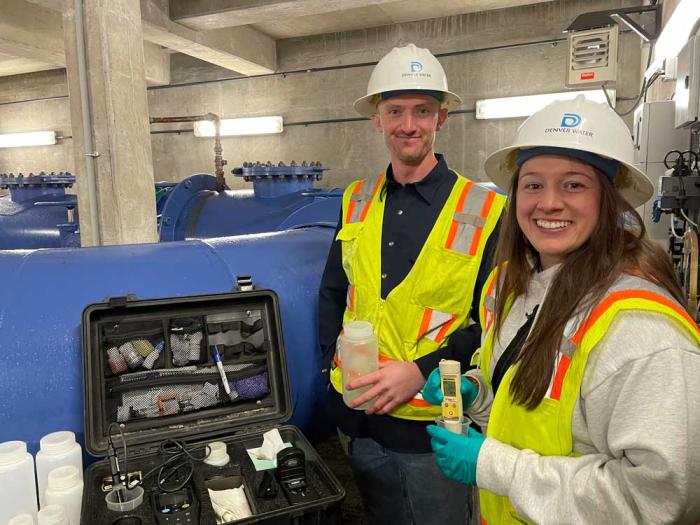

Hayden Simons and Molly McConnell, water quality technicians, collect water samples from a pipe in Denver Water's distribution system to monitor pH levels and other parameters of the water before it reaches customer homes.

And a troubleshooting team continues to run tests on the old lead service lines pulled from the ground years ago, learning more about how the pipes react over time.

“The data we’re collecting during our testing on old lead service lines is advancing our understanding, as Denver Water as well as the industry, of the science of lead reduction in drinking water. We are proud of the work the organization is doing to advance that science and protect public health,” said Ryan Walsh, manager of the water treatment engineering section at Denver Water, whose team tested various treatment options on old lead pipes and later planned, designed and executed the treatment plant systems involved in increasing the pH level.

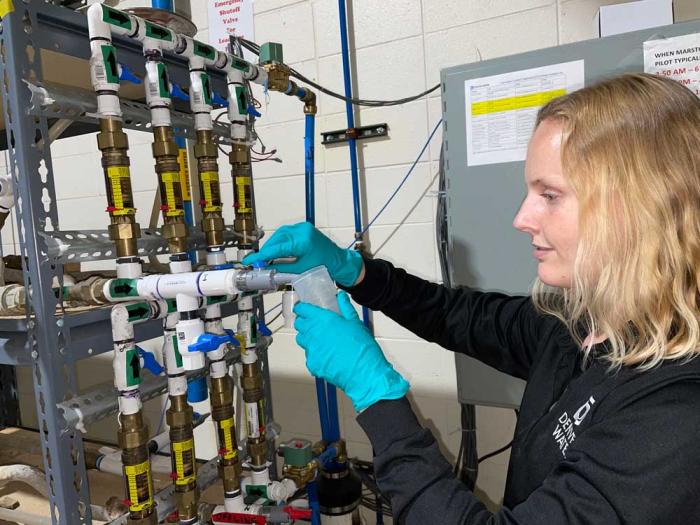

Rachel Himyak, water treatment lead, collects a sample of water that's been run through old lead service lines as part of ongoing studies at Denver Water of pH adjustment.

So, for Tom Roode, the head of Denver Water’s operations and maintenance division, that moment captured on a shaky cellphone video in early March 2020 signifies two things.

It’s a moment that’s as close to a NASA-like launch sequence as you can get in the water industry.

And it’s a demonstration of the capabilities of the people who work at Denver Water.

“Lots of work by a lot of people led up to making that moment look easy,” Roode said.
