Datasheet | January 6, 2020

The Diaphragm Dosing Pump that Won't Vapor Lock

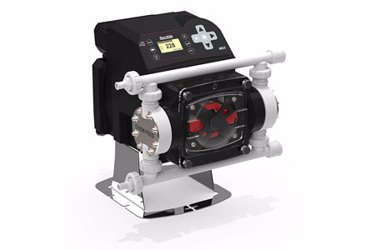

Blue-White-MD3

Features

  • Hybrid diaphragm metering with industry best turndown at 2,000:1
  • Smooth chemical dosing, no pulsation dampener needed
  • Simple installation and setup with built-in controls, Drop-in-place
  • Built for long life at high pressures, 5 year warranty on all wetted parts
  • Output rates to: 52.6 GPH (198.8 LPH) and pressures to 145 PSI (10 Bar)
  • Diaphragm Failure Detection (DFD) system. Senses diaphragm failure by detecting chemical in pump head.
  • No maintenance brushless variable speed motor
  • Included wetted end fittings allow for more than 14 inlet and outlet configurations
  • Quick visual inspection with built in LED light
  • Control Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external speed or batch control and 0-30 VDC / contact closure remote start/stop.
  • Stroke count display with user prommable alarm set-point for diaphragm maintenance
  • VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed, output rate, input signal values, and service alarm status in three easy to see colors
  • No pressure regular required
  • Wetted ends constructed out of PVDF
  • Compatible with Blue-White’s output Flow Verification Sensor (FVS) system
