Tiny Sensors Rapidly Detect 'Forever Chemicals' In Water

New portable test can find different PFAS chemicals, including those now regulated by the E.P.A.

They linger in our water, our blood and the environment—so-called "forever chemicals” that are notoriously difficult to detect.

But researchers at the University of Chicago Pritzker School of Molecular Engineering (UChicago PME) and Argonne National Laboratory have collaborated to develop a novel method to detect miniscule levels of the substances known as PFAS in water. The method, which they plan to share via a portable, handheld device, uses unique probes to quantify levels of PFAS “forever chemicals,” some of which are toxic to humans.

“Existing methods to measure levels of these contaminants can take weeks, and require state-of-the-art equipment and expertise,” said Junhong Chen, Crown Family Professor at the UChicago Pritzker School of Molecular Engineering and lead water strategist at Argonne. “Our new sensor device can measure these contaminants in just minutes.”

The technology, described in the journal Nature Water, can detect PFAS present at 250 parts per quadrillion—like one grain of sand in an Olympic-sized swimming pool.

That gives the test utility in monitoring drinking water for two of the most toxic “forever chemicals,” perfluorooctanoic acid (PFOA) and perfluorooctanesulfonic acid (PFOS), for which the U.S. Environmental Protection Agency (E.P.A.) recently proposed new limits.

“PFAS detection and elimination is a pressing environmental and public health challenge,” said Andrew Ferguson, professor of molecular engineering at UChicago PME. “Computer simulations and machine learning have proven to be an incredibly powerful tool to understand how these molecules bind to molecular sensors and can guide experimental efforts to engineer more sensitive and selective molecular probes.”

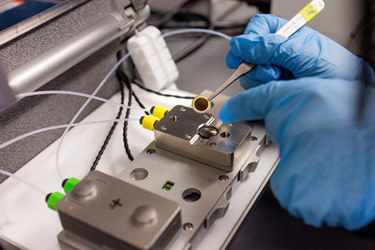

Researchers place a small, circular chip on an instrument to measure the adsorption of PFAS onto the molecular coatings.Photo by John Zich

The result may eventually be that consumers can test their own water and make better choices about their environment and what they consume.

“Even though they are typically present at miniscule concentrations, PFAS do have certain molecular characteristics that differentiate them from other things dissolved in water—and our probes are designed to recognize those features,” said Seth Darling, a senior scientist at both Argonne and UChicago.

A detection challenge

PFAS are oil- and water-resistant chemicals that are used for a wide range of consumer and industrial products, including non-stick pots and pans, fast food packaging, firefighting foam, raincoats and stain-resistant carpeting. They’re often called “forever chemicals” as they’re incredibly long-lasting and do not naturally degrade, but instead accumulate in the environment and people’s bodies over time.

In recent years, studies have linked PFAS to health concerns, including cancers, thyroid problems and weakened immune systems. Considering some of these findings, the E.P.A. proposed the new limits for PFOS and PFOA.

“The problem with enforcing these limits is that it’s very challenging and time-consuming to detect PFAS,” said Chen. “You currently can’t just take a sample of water and test it at home.”

The gold standard for measuring PFAS levels is an expensive laboratory test known as liquid chromatography/tandem mass spectrometry, which separates chemical compounds and provides information on each one.

Researchers attempting to make their own faster and cheaper PFAS tests face a few challenges. For one, PFAS chemicals are often present in water at much lower concentrations than dozens of other, more common contaminants. In addition, there are thousands of different PFAS chemicals with only slight variations between their chemical structures—but important differences in their health effects and regulations.

Chen’s team has been developing highly sensitive, portable sensors on computer chips for the past 15 years. Chen is already using the technology in a lead sensor for tap water and his lab group suspected the same method could be used in PFAS sensing. Their proposal to adapt it for PFAS became part of the National Science Foundation Water Innovation Engine in the Great Lakes.

Designed by AI

The gist of Chen’s sensor is that if a PFAS molecule attaches to his device, it changes the electrical conductivity that flows across the surface of the silicon chip. But he and his colleagues had to figure out how to make each sensor highly specific for just one “forever chemical”—such as toxic PFOS.

To do this, Chen, Ferguson, Darling and the rest of their team turned to machine learning to help select unique probes that could sit on the sensing device and ideally bind only the PFAS of interest. In 2021, they won a Discovery Challenge Award from the UChicago Center for Data and Computing to support their use of artificial intelligence in designing their probes.

“In this context, machine learning is a tool that can quickly sort through countless chemical probes and predict which ones are the top candidates for binding to each PFAS,” said Chen.

In the new paper, the team showed that one of these computationally-predicted probes does indeed selectively bind to PFOS—even when other chemicals common in tap water are present at much higher levels.

When water containing PFOS flows through their device, the chemical binds to the new probe and changes the electrical conductivity of the chip. How much the conductivity changes depends on the level of PFOS.

To ensure the readings from the new device were correct, the team collaborated with E.P.A. and used its approved liquid chromatography/tandem mass spectrometry methods. This confirmed concentrations and verified the levels were in line with what the new device detected. The team further showed that the sensor could maintain its accuracy even after many cycles of detection and rinsing, suggesting the potential for real-time monitoring.

“Our next step is to predict and synthesize new probes for other, different PFAS chemicals and show how this can be scaled up,” said Chen. “From there, there are many possibilities about what else we can sense with this same approach—everything from chemicals in drinking water to antibiotics and viruses in wastewater.”

Citation: “Reversible ppt-Level Detection of Perfluorooctane Sulfonic Acid in Tap Water using Field-Effect Transistor Sensors,” Wang et al. Nature Water, September 25, 2025. DOI: 10.1038/s44221-025-00505-9

This article was originally published on the UChicago PME website.
