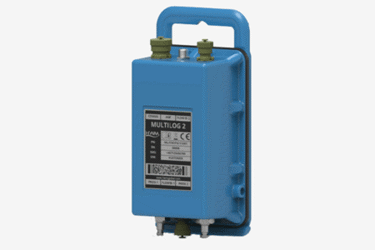

Multilog 2

Multilog-2

Multilog 2 is a highly advanced and versatile multi-channel data logger designed to monitor any combination of digital and analog signals.

Request Information

Key Features and Benefits

  • Wireless: 4G LTE-M (Cat-M1) based cellular communication standard
  • Verizon/T-Mobile Coverage: These networks are recognized for exceptional performance and reliability in markets across the US. FCS is compatible with LTE-M only
  • Serial input option: for connection to digital (encoder output) smart meters, SonicSens level sensors, Modbus, SDI12, RS232
  • WITS 1.3 Protocol: support for WITS 1.3 delivering direct integration with WITS SCADA systems
  • Four-channel logging: 8 or 16 channels available on request
  • Fast logging: primary logging to 1 second as standard – 25hz for transient events
  • Alarm: full alarm functionality
  • Robust: rugged die-cast aluminum case
  • Accurate readings: actual max and min flow and investigation of pressure spikes
  • Pulse interval timing: smooths reading set times of infrequent pulses
  • External antennas: multiple external antenna options to support improved signal strength (contact FCS for more information)
  • Fully waterproof: the IP68 rating has been tested at 10m depth over 24 hours
  • Local data download: 10-pin military plug connected to laptop or desktop PC
  • Optional outputs: replicate inputs or trigger on alarm, allows operation of third party sensors, e.g. water samplers
  • Long-term monitoring: 3-5 year battery life (depending on configuration and signal strength)
