Model 420-T Ton Mounted Vacuum Regulator

Source: JCS Industries Inc.

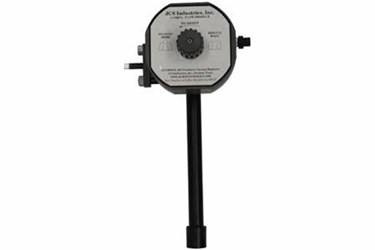

Model 420-T Ton Mounted Vacuum Regulator

The JCS Industries Model 420-T Ton Mounted Vacuum Regulator is designed for years of safe and reliable service.

Request Information

This robust design includes a machined front and back body, internal (non-latching) switching mechanism, internal pressure relief vent and a nonmetallic inlet valve assembly. The Model 420-T is direct ton container mounted.

The JCS Model 420-T operates as a pressure reducing valve to transfer gas under pressure to gas under vacuum within the chemical feed system.

Installed between the ton container of the chosen gas and the chemical feeder, Model 4200, the Model 420-T will switch from one ton container to the next one in line as soon as the gas in the first ton container is depleted. An internal switchover valve is automatically activated in the event of gas supply failure; the reduction of the vacuum will isolate the regulator diaphragm cavity from pressurized pipe work.
