The Coriolis and electromagnetic flow instruments have been optimized for maximum safety, enhanced measurement quality and device accessibility.

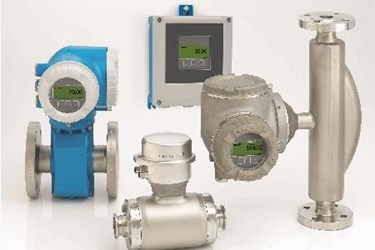

Endress+Hauser releases Proline 300/500, a family of industry optimized “smart” Coriolis mass and electromagnetic flow instruments that simplify installation, speed commissioning, and streamline both operation and maintenance activities.
The Proline Promass Coriolis mass flowmeters are available in 11 models ranging in sizes from 1/24 to 14 inches in diameter, for measuring flows up to 100,000 tons per day. Proline Promag flowmeters are available in three models in sizes from 1/12 to 78 inches for volume flows up to 634 million gallons per day. Both types are available in models suitable for high temperatures, corrosive fluids, hygienic and sterile process applications.
Proline instruments connect to control systems via 4-20mA HART, WirelessHART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus, EtherNet/IP or PROFINET. Both families provide access to users via the device’s display, a web server, a wireless LAN, handheld devices, asset management or process automation solutions, and Fieldbus protocol. Each provides fast commissioning, in-situ device verification during operation, continuous self-diagnostics and automatic on-board data storage.
Both families have robust transmitter housings available in aluminum, hygienic or severe service stainless steel. Each housing has a two-chamber system with a front-mounted compartment for connecting source power, wiring the analog and/or digital inputs and outputs, and accessing the Ethernet service access port or device display. The second chamber permits service technicians to access the electronics modules for repair functions while maintaining protection against dust and contamination.
Local or remote four-line backlit optical displays with a WLAN connection allow access from a handheld device such as a smartphone or a tablet.
All Proline instruments have custody transfer approvals and meet the requirements of cCSAus, ATEX, NEPSI, INMETRO, EAC, IEC/EN 61326, NAMUR NE21, and EU and ACMA directives. They are also approved for use in SIL 2 and SIL 3 applications.
Smart Instrument Functions
Each Proline instrument has a HistoROM function to protect data storage automatically. This includes an event logbook and data logger that can be accessed locally or remotely, and storage of calibration and verification information. This onboard data storage makes it easy to replace and commission a new flow sensor.
The built-in web server provides universal browser-based access to device, diagnostics and process information from any device with an internet or Wi-Fi connection. Typical access devices include laptops, PCs, smartphones and tablets.
Endress+Hauser’s Heartbeat Technology package addresses device diagnostics, monitoring and verification functions used to satisfy regulatory, contractual, quality, safety or fiscal requirements.
Heartbeat Diagnostics provides self-monitoring for all Proline instruments meeting NAMUR NE107 requirements for clear and unambiguous categorization of events and device remedies for quick resolution of problems.
Optional Heartbeat Monitoring allows for customer identification of device trends from process influences such as buildup, settling solids or liquids, erosion, corrosion and multi-phase fluid flows.
The TÜV-attested Heartbeat Verification is the only method to have achieved third-party accreditation per traceable ISO metrological standards in operation. In-situ verification can be triggered at any time, from anywhere, to provide electronic quality reports.
The Proline instrument portfolio also connects directly to Endress+Hauser’s W@M lifecycle management software which tracks all necessary information about device calibrations, verifications, maintenance, and other functions over the life of the sensor and instrument.
For more information, visit www.us.endress.com/proline-300-500.
Endress+Hauser is a global leader in measurement instrumentation, services and solutions for industrial process engineering. Endress+Hauser provides sensors, instruments, systems and services for level, flow, pressure and temperature measurement as well as analytics and data acquisition. We work closely with the chemical, petrochemical, food & beverage, oil & gas, water & wastewater, power & energy, life science, primaries & metal, renewable energies, pulp & paper and shipbuilding industries. Endress+Hauser supports its customers in optimizing their processes in terms of reliability, safety, economic efficiency and environmental impact.
