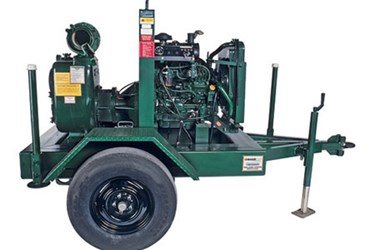

Pumps - Self Priming

Ideal Usage
Refineries, chemical facilities, waste water treatment plants, construction site dewatering.

Benefit
Low maintenance. Easy access with large cleanout port. Emergency shutdown features.

Performance

Suction Size - 3" – 6"
Discharge Size - 3" – 6"
Max Flow Range - 450 gpm – 1,700 gpm
Suction Lift - Up to 28'
Max Shut Off Head Range - 112' – 171'
Max Solids Size - Up to 3"
Max Operating Temp - Up to 160º F
Fuel No. - 2 Diesel
Run Time per Full Tank - Typically 24 hrs. Call for details.
Fuel Capacity - 50 gallons – 88 gallons
Operating Speed - 1,000 rpm – 2,200 rpm

General Information

Weight - 2,000 lbs – 3,900 lbs
Standard Mount - Trailer or skid
Prime Mover - Diesel engine and electric motor
Casing Material - Cast iron
Seal Type - Tungsten/tungsten or silicon/silicon
Safety Features - Coupling guards; high water temperature and low oil pressure shutdowns on diesel engines
