IFO Series Internally-Fed Rotary Screens Datasheet

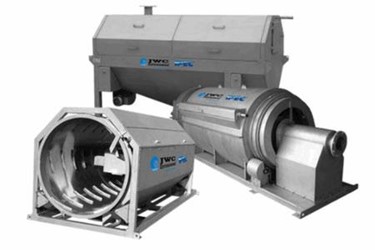

IFO Series of Internally-fed Rotary Screens have cylindrical drums mounted horizontally on four shaft-mounted wheels. The drum rotates at 4-5 rpm and is driven by a top-mounted, TEFC motor, geardrive, stainless steel chain and sprocket. The IFO/P series screening element is a perforated drum with openings ranging from 1/16 to 3/8 inch diameter, and the IFO/W series screening element is a wedgewire drum with slot openings ranging from 0.010 to 0.100 inches. The screen is supported on a tubular frame and is typically applied to flume waters.
